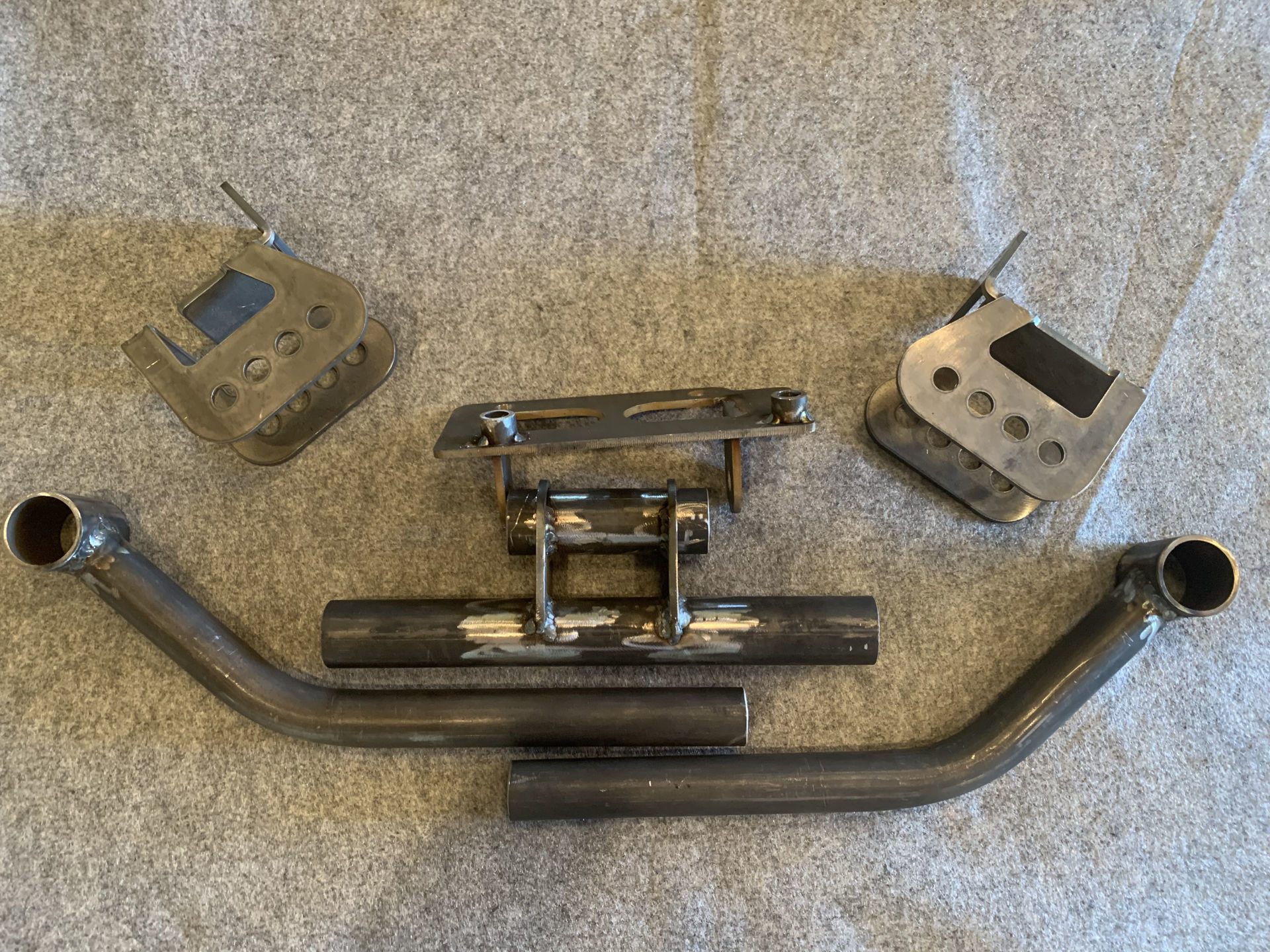

Here is the same crossmember we use in all our swaps. This is the most recent version of our AXXIS Crossmember Kit.
With saddle style frame side brackets, lining up your transmission crossmember is super easy. The saddle brackets have 4" of adjustment built into them to accomdate differnent transmission and skidplate combinations. The drivers side bracket is notched so you do not have to remove your frame side lines [brake, evap etc].
The Crossmember tube is fully adjustable to any TJ/LJ/YJ/CJ frame width.
With the design of this kit, you can clamp yur saddle brackets to the frame, pin in your crossmember tube and set your driveline angle and height with ease. once your happy with your set up, tack weld your assembly, remove your crossmember and bench weld your center tube. Fully weld in your saddle brackets, paint it all and re-install.
The AXXIS Crossmember Kit is available with differnet mounting brackets for the following transmissions
545RFE 4L60/80E NV3550 AX15
